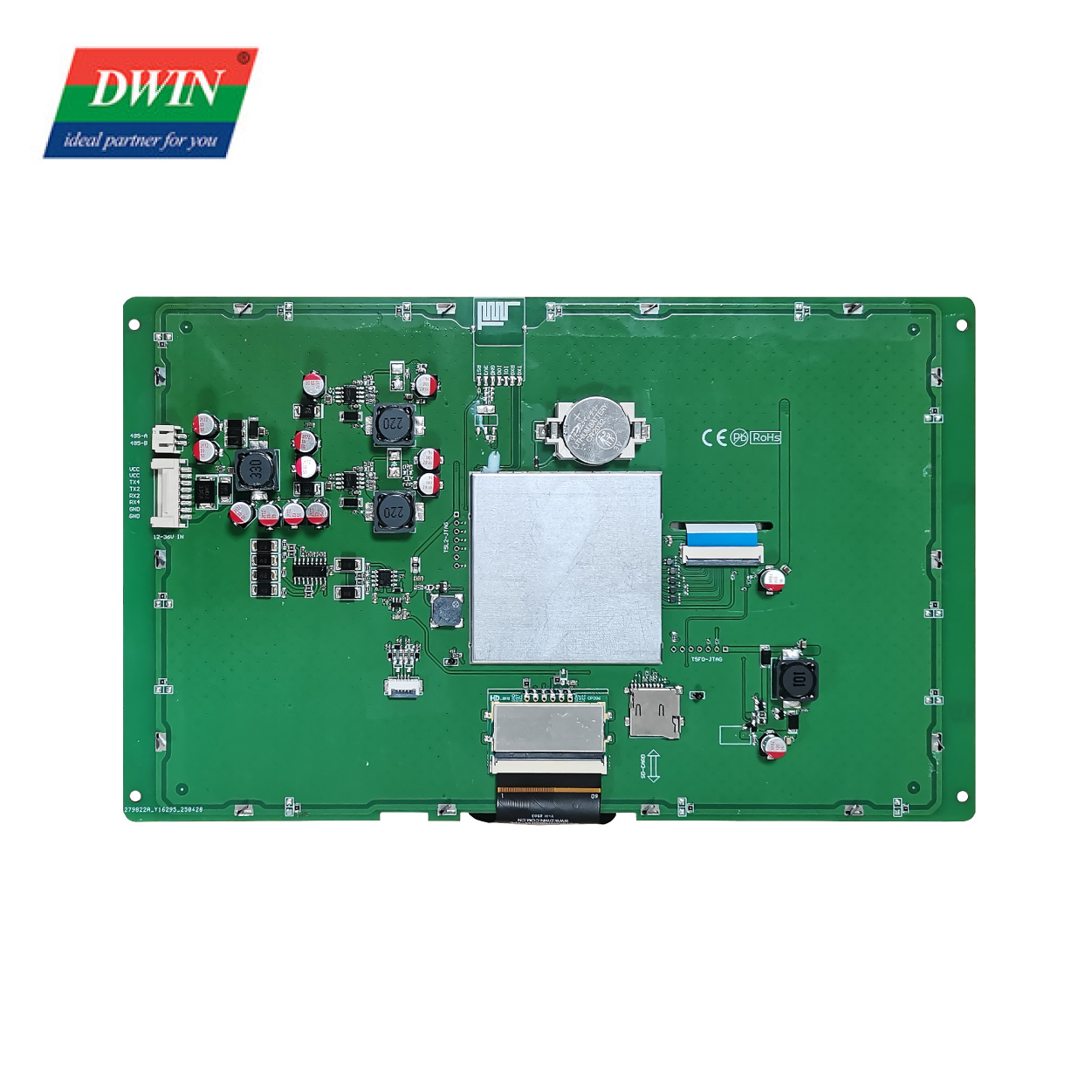

Specification

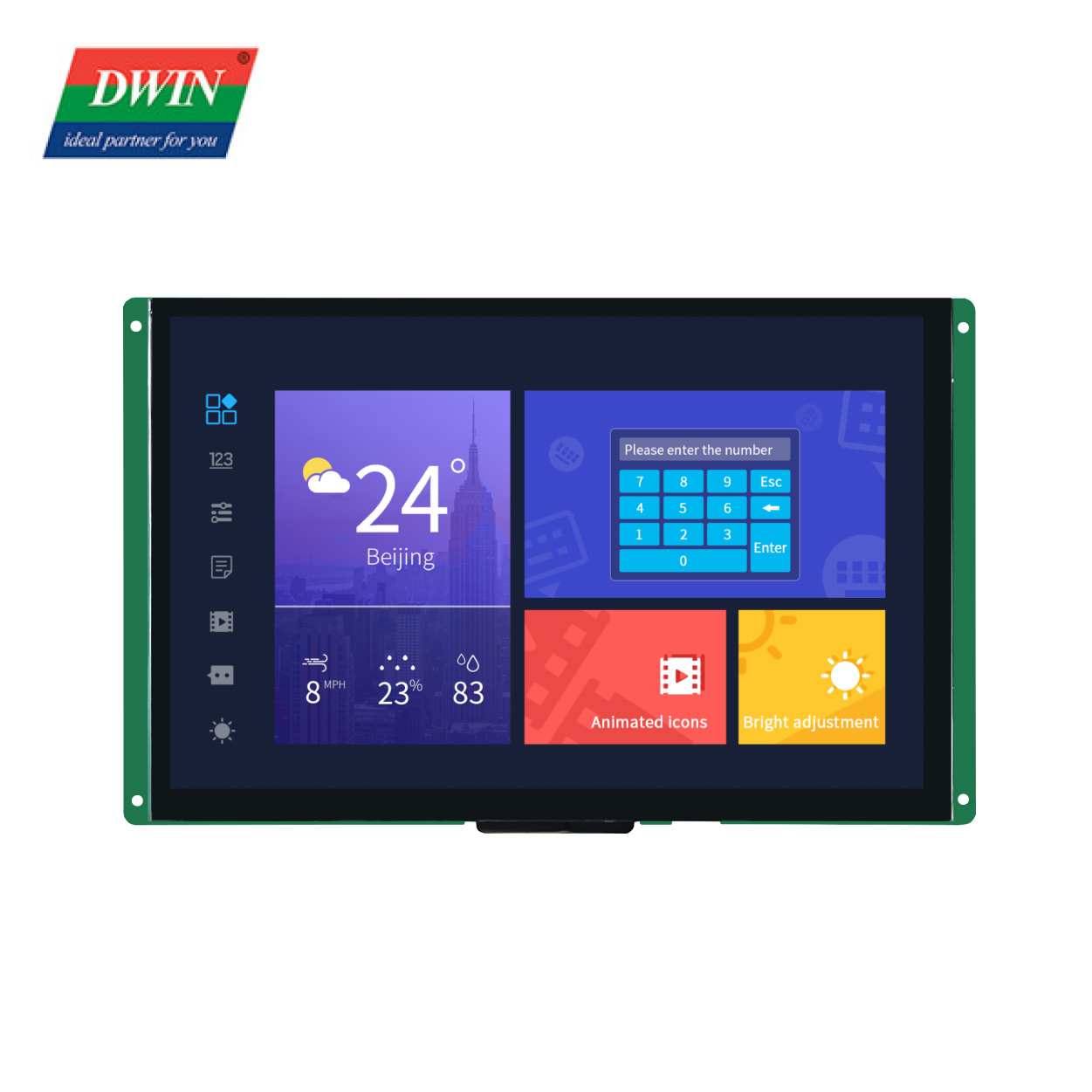

| T5L2 ASIC | DWIN independently developed, mass production in 2019. Dual 8051cores,GUI and application run on separate 8051 cores. |
| User interface | 8Pin_2.0mm socket for power supply and serial communication. |
| RS485 interface | 2Pin_ 2.0mm socket: for RS485 communication. |
| Flash | 32MB (2*16MB NOR Flash) for storing UI files like fonts, images, music, with over 100,000 erase/write cycles. |
| Expand Flash pads | Two expansion slots support NOR or NAND Flash, up to 64MB(4x16MB NOR Flash) or 48MB+512MB (3x16MB NOR Flash + 512MB NAND Flash). |
| Buzzer | 3V passive buzzer. |
| RTC | Button cell for power supply. Accuracy: ±20ppm @25℃. |
| SD card slot | For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/srate |
| Reserved module pads | Supports DWIN Wi-Fi modules (e.g., Wi-Fi-20) and USB download modules(e.g., HDL702) |
| PGT05 interface | For programming DGUS firmware. |
| LCD Type | IPS,TFT LCD |
| Viewing Angle | Wide viewing angle, (85°/85°/85°/85° typical), high contrast, and good color reproduction. |
| Resolution | 1280×800 (support 0°/90°/180°/270°) |
| Active Area (A.A.) | 216.96mm (W)×135.60mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >50000 hours |
| Brightness | DMG12800S101_03WTC: 700nit |
| DMG12800S101_03WTR: 550nit | |
| DMG12800S101_03WN: 1000nit | |
| Brightness Control | 100-level brightness adjustment (Flickering may occur at 1%-30%of max brightness; not recommended for use in this range) |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | |
| Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface and hardness ≥ 6H. |
| Light Transmittance | ≥85% |
| Type | Resistive touch panel. |
| Structure | ITO film + ITO glass structure and hardness 3H. |
| Light Transmittance | 78%±3% |
| Mode | UART2: RS232 UART4: RS232(Only available after OS configuration) UART5: RS485(Only available after OS configuration) |
|||||
| UART2,4 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | - | -5.0 | -3.0 | V | ||
| Output 0 | 3.0 | 5.0 | - | V | ||
| Input 1 | -15.0 | -5.0 | - | V | ||
| Input 0 | - | 5.0 | 15.0 | V | ||
| UART2,4 Baud Rate |
3150~3225600bps, typical value of 115200bps | |||||
| UART5 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | 2.5 | 5.0 | - | V | ||
| Output 0 | - | -5.0 | -2.5 | V | ||
| Input 1 | 0 | 2.5 | - | V | ||
| Input 0 | - | -2.5 | -0.2 | V | ||
| UART5 Baud Rate |
3150~921600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (O Sconfiguration) UART5: N81/E81/O81/N82 ,4 modes (O Sconfiguration) |
|||||
| Interface Cable | 8Pin_2.0mm (RS232) 2Pin_2.0mm (RS485) |
|||||
| Rated Power | <15W | |||||
| Operating Voltage | 12~36V, typical value of 12V. | |||||
| Operating Current | 850mA | VCC=12V, max backlight | ||||
| 100mA | VCC=12V, backlight off | |||||
| Recommended power supply: 12V 1.5A DC. | ||||||
| Operating Temperature | -40℃~85℃ (12V @ 60% RH) | |||||
| Storage Temperature | -40℃~85℃ | |||||
| Anti-UV | Yes | |||||
| Conformal Coating | Yes | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
| Aging Test | 72 hours high temperature charged aging at 50℃ | |||||
