Specification

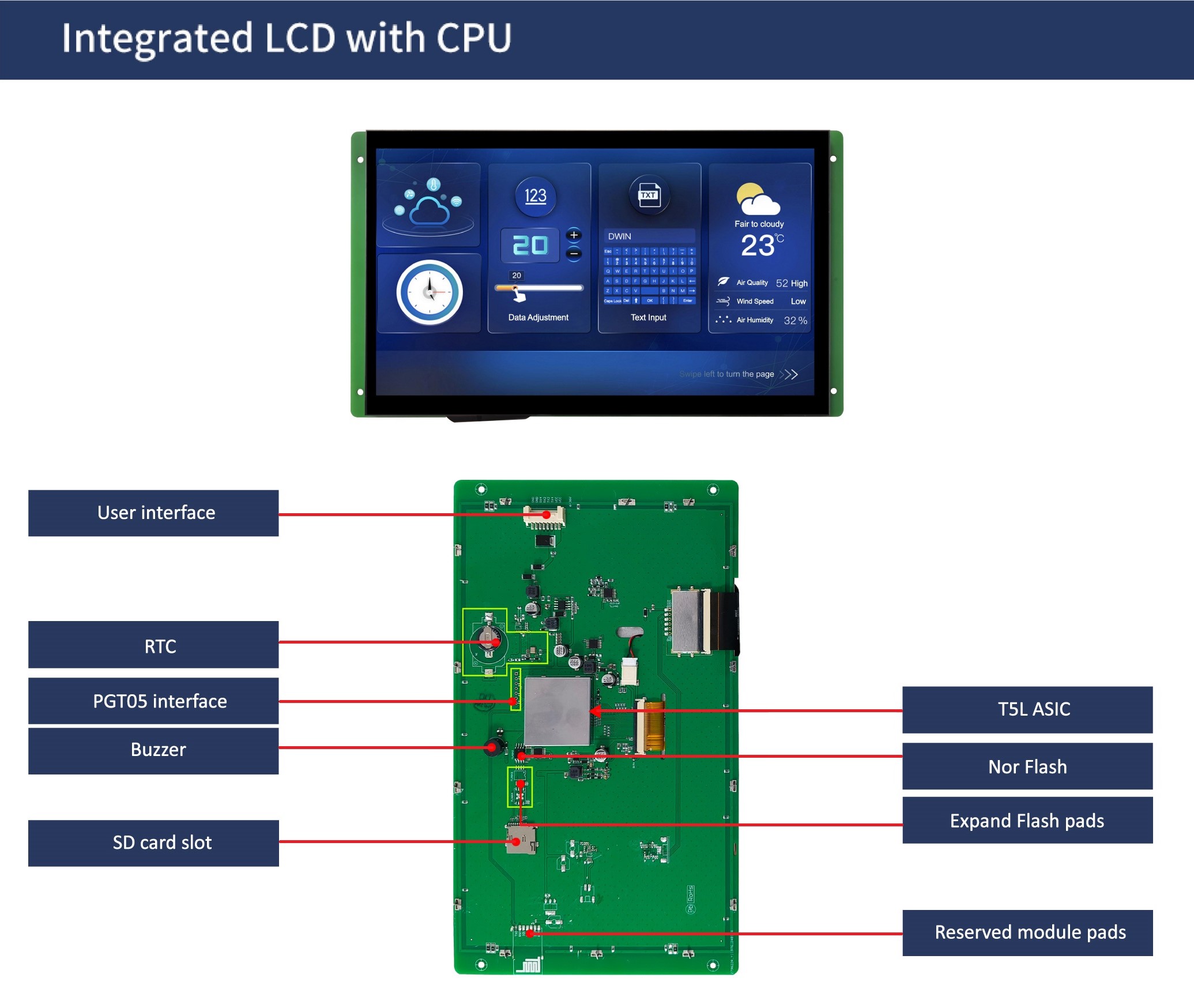

| TP interface | Capacitive touch: COB structure, IIC interface |
| Resistive touch: FPC4_1.0mm | |
| User interface | 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 32 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Expand Flash pads | Two expansion slots are available, supporting expansion of NOR Flash and NAND Flash. The maximum expansion for NOR Flash is up to 64Mbytes. When combining NOR Flash and NAND Flash, the maximum expansion is up to 48Mbytes (using two expansion slots) + 512Mbytes. |
| Buzzer | 3V passive buzzer. |
| RTC | Super-capacitor supplies power to RTC, accuracy: ±20ppm@25℃. Can maintain normal operation for 7 days after power-off. Reserved button cell power supply compatible circuit. |
| SD card slot | Supports downloading of all files (user UI files, CFG files, underlying kernel firmware), displays download statistics on the screen, download rate: 4Mb/s. When downloading files, the SD card needs to be formatted in FAT32 format, with a recommended allocation unit size of 4096. |
| Reserved module interface | Supports soldering of WI-FI module and USB download module. WI-FI module model: WI-FI-10; USB module models: HDL702, HDL703. |
| LCD Type | IPS process TFT display screen |
| Viewing Angle | Wide viewing angle (typical values are 85°/85°/85°/85°), high contrast, and good color reproduction |
| Resolution | 1024×600 pixels (0°/90°/180°/270°) |
| Color | 16.7M color (24-bit 8R8G8B) |
| Active Area (A.A.) | 222.72mm (W)×125.3mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness | DMG10600T101_09WTC: 450nit |
| DMG10600T101_09WTR: 400nit | |
| DMG10600T101_09WN: 500nit | |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range) |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | |
| Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface and hardness ≥ 6H |
| Light Transmittance | >85% |
| Type | RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Light Transmittance | 78%±3% |
| Mode | UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration) |
|||||
| Voltage Level | Test Condition | Min | Typ | Max | Unit | |
| Output 1, Iout = -4mA | 4.78 | 5.0 | - | V | ||
| Output 0, Iout = 4mA | - | - | 0.4 | V | ||
| Input 1 | 2.5 | 5.0 | - | V | ||
| Input 0 | - | - | 1.0 | V | ||
| Baud Rate | 3150~3225600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration) |
|||||
| Interface Cable | 8Pin_2.0mm | |||||
| Rated Power | <6W | |||||
| Operating Voltage | 9~36V, typical value of 12V | |||||
| Operating Current | 490mA | VCC=12V, max backlight | ||||
| 150mA | VCC=12V, backlight off | |||||
| Recommended power supply: 12V 1A DC | ||||||
| Operating Temperature | -20℃~70℃ (12V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Anti-UV | Yes | |||||
| Conformal Coating | Yes | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
