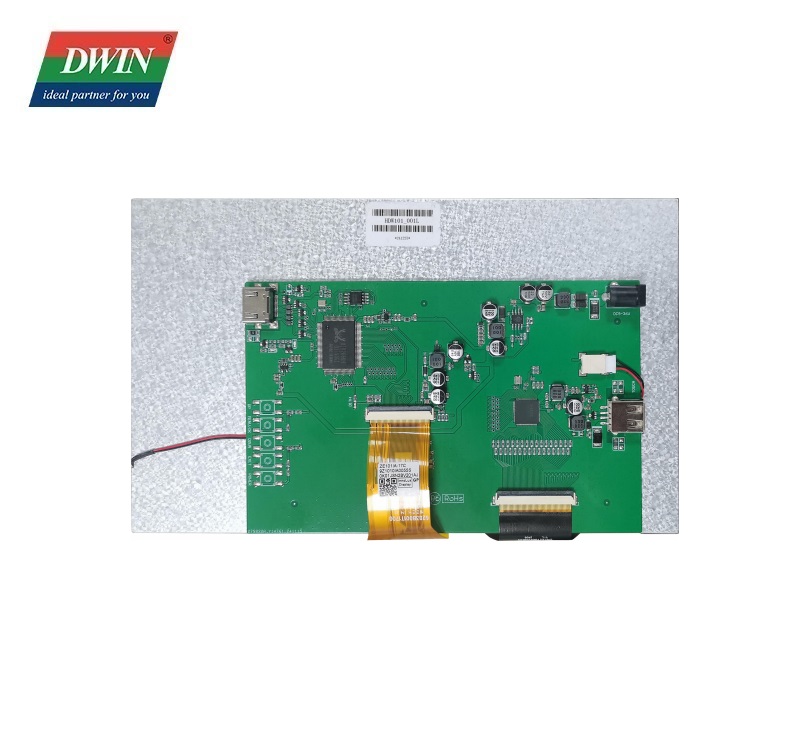

10.1 Inch IPS 200nit 1024*600 Raspberry pi Display Capacitive Touch Tempered Cover Glass HDMI Panel Screen HDW101_001L
Features:
● IPS screen, Multi-touch support, Capacitive touch screen
● Capacitive Touch Panel
● Plug & Play Monitor
● Suitable for Windows, Raspberry Pi, Linux, Android system
● Not only meet the current quality of 1080P rule, but also support the most advanced digital audio formats as DVD audio
● Transiting uncompress high resolution video and multi-channel audio data in digital form while maintaining high-quality
● With broadband digital content protection to prevent unauthorized copying of high audio-visual content.
|
Item |
Parameter |
Description |
|
Color |
16.7M (16777216) colors |
24 bit color 8R8G8B |
|
Panel Type |
IPS |
IPS TFT LCM ,wide viewing angle |
|
Viewing Angle |
85/85/85/85 (L/R/U/D) |
Best View: symmetrical |
|
Active Area (A.A.) |
222.70(W)*125.30(H) |
1024*600 |
|
Resolution |
1024*600 |
- |
|
Backlight |
LED |
>20000H(Continuous working with maximum brightness, time of the brightness decays to 50%) |
|
Brightness |
200nit |
- |
|
Note: Displaying of high-contrast still images for more than 30 minutes may result in residual images. Please add animation to avoid this problem. |
||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Power Voltage |
- |
9 |
12 |
36 |
V |
|
Operating Current |
VCC=12V |
- |
470 |
- |
mA |
| Recommended power supply: 12V 1A DC | |||||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Working Temperature |
60%RH at 12V voltage |
-20 |
25 |
70 |
℃ |
|
Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
|
Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
|
ESD |
Air discharge: ± 8KV |
||||
|
Item |
Description |
|
Socket |
9-36V power interface, HDMI interface |
|
USB Interface |
Yes (Connected to touch screen) |
|
SD Slot |
None |
|
Peripheral |
Capacitive touch panel |
|
Dimension |
235.0(W)*143.0(H)*20.6(T)mm |
|
Net Weight |
456g |
