Specification
|
Properties |
Parameters |
| Motherboard Level | Industrial |
| CPU | Quad-core ARM CortexTM-A7 Processor |
| OS | Linux3.10 |
| FLASH | 8Gbytes EMMC |
| RAM | 1Gbytes DDR3 |
|
Properties |
Parameters |
Description |
| Size | 10.1 inch | - |
| LCD Type | IPS, TFT LCD | - |
| Viewing Angle | 85°/85°/85°/85° | Wide viewing angle, high contrast, and good color reproduction |
| Active Area (AA) | 216.96mm(W)x135.60mm(H) | - |
| Viewing Area(VA) | 217.96mm(W)x135.60mm(H) | - |
| Resolution | 1280x800 | - |
| Backlight Service Life | >20000 Hrs | Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level. |
| Brightness | 350nit | 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range) |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | ||
|
Properties |
Min |
Typ |
Max |
Unit |
| Power Voltage |
12.0 |
12.0 |
36.0 |
V |
|
Recommended power supply:12V 1A DC. |
||||
|
Properties |
Conditions |
Min |
Typ |
Max |
Unit |
| Working Temperature |
60%RH at 12V voltage |
-20 |
25 |
70 |
℃ |
| Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
| Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
| Conformal coating |
Yes |
||||
| ESD |
Air discharge±8KV, Contact discharge ±6KV |
||||
| EFT |
Group pulse interference ±2KV |
||||
|

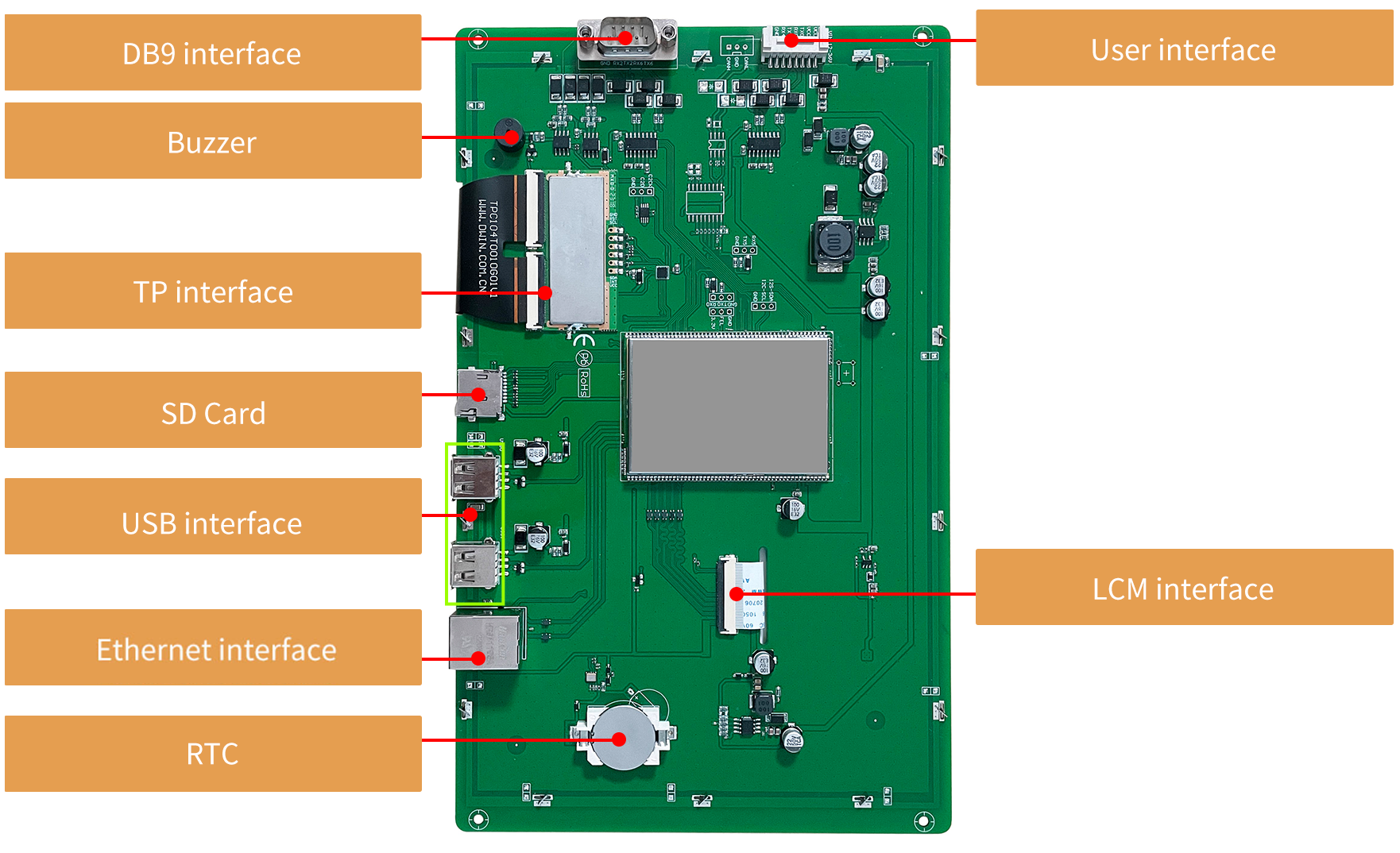

Properties |
Description |
| User Interface |
8Pin_2.0mm Socket, DB9 Socket |
| COM |
RS232*4 (COM0 & COM2 & COM4 & COM6), RS422*1 (COM3) |
| USB |
USB*2 (HOST) |
| SD card |
Max. 64G |
| Ethernet |
10/100Mbps |
| RTC |
Accuracy: ±20ppm @25℃ |
| Buzzer |
3V passive buzzer |
| CAN |
Reserved CAN interface |
