Specification
| Motherboard level | Commercial-grade |
| CPU | RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor |
| OS | Linux 4.19 |
| Storage | 8Gbytes eMMC |
| RAM | 2Gbytes LPDDR4 |
| Size | 10.1 inch | - |
| LCD Type | IPS, TFT LCD | - |
| Viewing Angle | 85°/85°/85°/85° | Wide viewing angle, high contrast, and good color reproduction |
| Active Area (AA) | 222.72mm (W)*125.28mm (H) | - |
| Resolution | 1024x600 | - |
| Backlight Service Life | >20000 Hrs | Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level |
| Brightness | 200nit | 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range) |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | ||
| Power Voltage |
9.0 |
12.0 |
36.0 |
V |
| Recommended power supply:12V 1A DC. | ||||
| Working Temperature |
60%RH at 12V voltage |
-20 |
25 |
65 |
℃ |
| Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
| Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
| Conformal Coating |
Y |
||||
| ESD |
Air: ±8KV; Contact: ±4KV |
||||
| EFT |
Group pulse interference±2KV |
||||
| CE Certification |
Y |
||||

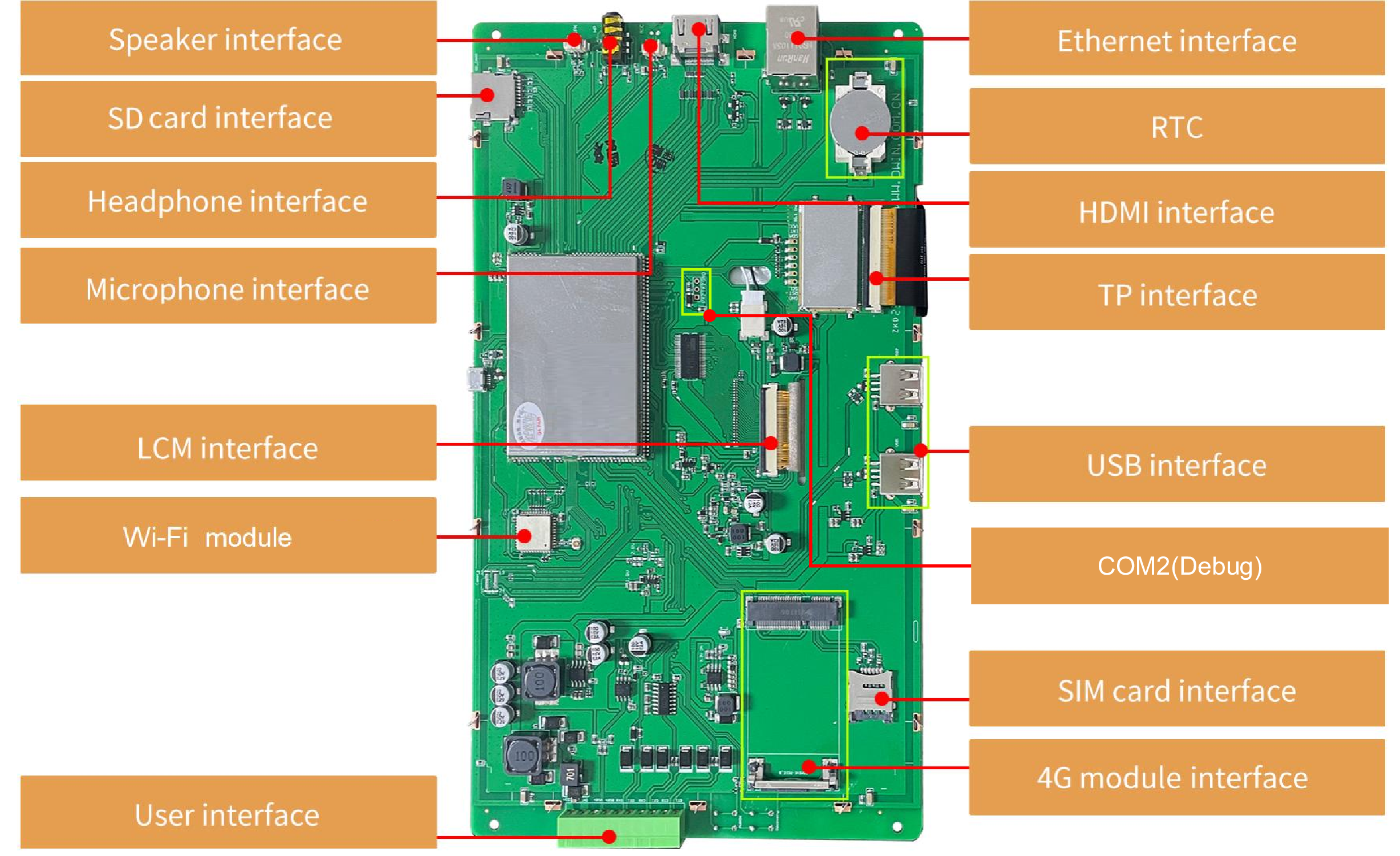

| User Interface |
10Pin_3.81mm Horizontal socket |
| COM |
RS232*2(COM5 & COM9), RS485*1(COM8), TTL*1(COM0),TTL*1(COM2, debug) |
| Wi-Fi |
IEE 802.11Bb/g/n, 2.4GHz, Wi-Fi 4 |
| Bluetooth Version |
BT4.2 |
| Ethernet |
10/100Mbps |
| USB |
USB 2.0*2(HOST),Micro USB*1(OTG) |
| SD Card |
Max 64G |
| RTC |
Accuracy: ±20ppm @25℃ |
| Speaker |
2Pin_1.25mm interface*1 |
| Microphone |
2Pin_1.25mm interface*1 |
| Headphone |
3.5mm spacing interface |
| Camera |
USB, not supported by MIPI |
| 4G module |
Factory not configured, customizable to add |
| HDMI interface |
HDMI*1 |
